ROTARY PARTS

K3V K5V SERIES

PARTS DESCRIPTION

Kawasaki Hydraulic Piston Pump

Machine Use :
K3V63DT K3V112DT K3V140DT K3V180DT K5V80DT K5V140DT K5V180DT K5V200DT

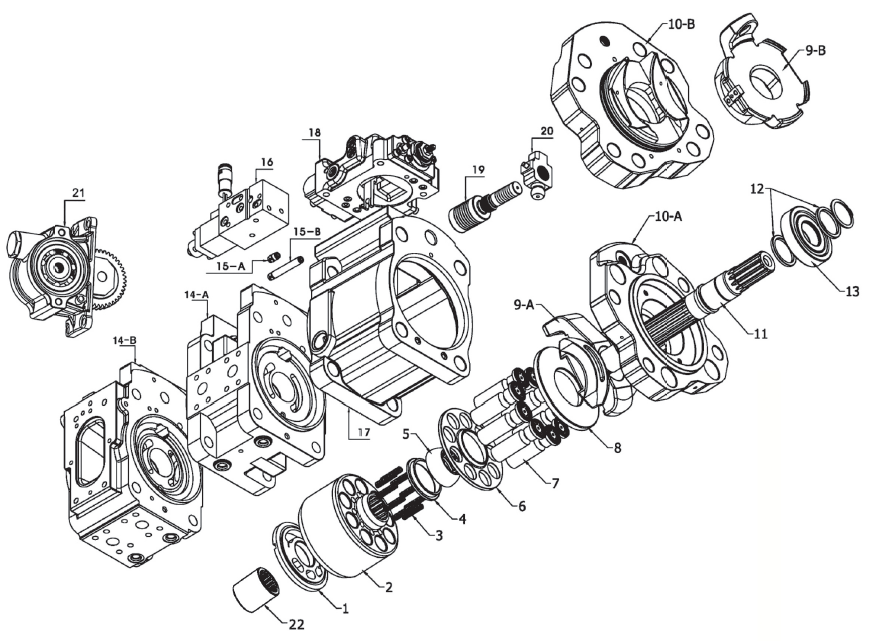

ITEM	DESCRIPTION QTY	REMARKS
1	VALVE PLATE (L/R)
2	CYLINDER BLOCK
3	COIL SPRING
4	SPACE OF BALL GUIDE
5	BALL GUIDE
6	SET PLATE
7	PISTON SHOE
8	SHOE PLATE
9	SWASH PLATE
10	SUPPORT
11	DRIVE SHAFT (FR/RR)
12 Space of Drive Shaft
13	ROLLER BEARING
14	VALVE BLOCK
15-A	CHECK VALVE - SHORT
15-B	CHECK VALVE - LONG
16	EPR VALVE
17	CASE
18	REGULATOR ASSY
19	SERVO PISTON
20	TILTING PIN
21	PTO BOX ASSY
22	COUPLING
